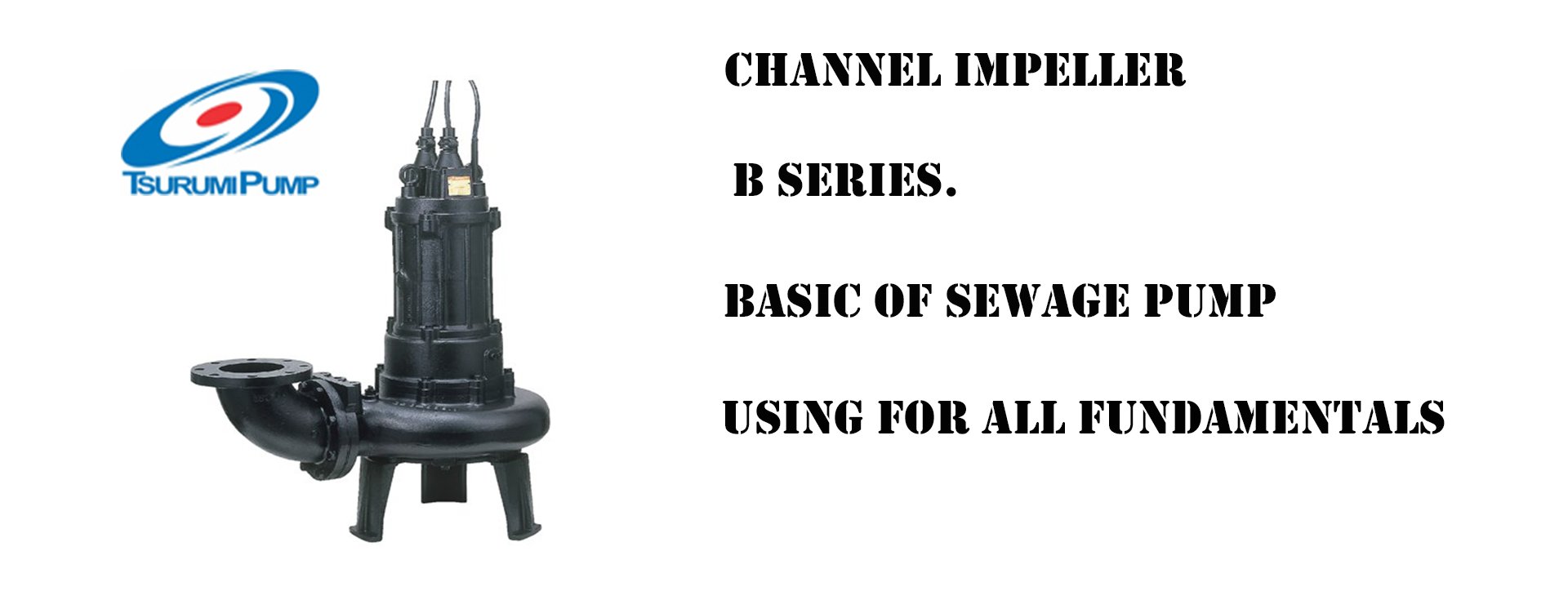

TSURUMI B Series
Channel Impeller
ปั้มสูบน้ำเสียอเนกประสงค์ Submersible Pump ใช้สำหรับระบบบำบัดน้ำเสีย
| Series | Guide Rail Fitting | Discharge mm. | Motor Output kW | Phase | Dimensions L×H mm. | Dry Weight kg. |
| 50B2.4S | TOS50B2.4S | 50 | 0.4 | Single | 340×453 | 25 |
| 50B2.4 | TOS50B2.4 | 50 | 0.4 | Three | 340×420 | 23 |
| 50B2.75S | TOS50B2.75S | 50 | 0.75 | Single | 405×523 | 32 |
| 50B2.75H | TOS50B2.75H | 50 | 0.75 | Three | 405×415 | 24 |
| 50B2.75 | TOS50B2.75 | 50 | 0.75 | Three | 405×439 | 25 |
| 80B21.5 | TOS80B21.5 | 80 | 1.5 | Three | 446×536 | 36 |
| 100B42.2 | TOS100B42.2 | 100 | 2.2 | Three | 596×616 | 68 |
| 100B43.7 | TOS100B43.7 | 100 | 3.7 | Three | 602×690 | 84 |
| 100B43.7H | TOS100B43.7H | 100 | 3.7 | Three | 603×666 | 82 |
| 100B45.5 | TOS100B45.5 | 100 | 5.5 | Three | 603×666 | 147 |
| 100B47.5 | TOS100B47.5 | 100 | 7.5 | Three | 687×929 | 169 |
| 150B63.7 | TOS150B63.7 | 150 | 3.7 | Three | 838×903 | 188 |
| 150B47.5H | TOS150B47.5H | 150 | 7.5 | Three | 834×952 | 210 |
| 150B47.5L | TOS150B47.5L | 150 | 7.5 | Three | 871×1085 | 200 |
| 150B411 | TOS150B411 | 150 | 11 | Three | 895×1098 | 250 |
| 150B415 | TOS150B415 | 150 | 15 | Three | 895×1168 | 270 |
| 150B422 | TOS150B422 | 150 | 22 | Three | 898×1222 | 327 |
| 150B437 | TOS150B437 | 150 | 37 | Three | 1085×1548 | 640 |
| 250B611 | TOS250B611 | 250 | 11 | Three | 1203×1211 | 430 |
| 250B415 | TOS250B415 | 250 | 15 | Three | 1146×1228 | 420 |
| 250B622 | TOS250B622 | 250 | 22 | Three | 1313×1565 | 665 |
| 250B430 | TOS250B430 | 250 | 30 | Three | 1295×1564 | 730 |
| 250B437 | TOS250B437 | 250 | 37 | Three | 1295×1575 | 725 |
| 250B445 | TOS250B445 | 250 | 45 | Three | 1313×1537 | 695 |
| 250B455 | TOS250B455 | 250 | 55 | Three | 1293×1698 | 1100 |
| 250B475 | TOS250B475 | 250 | 75 | Three | 1293×1698 | 1150 |
